Kingston A400 240GB SSD Review

Kingston is brand that needs no introduction when it comes to storage devices or RAM modules. Known for its high price to performance ratio the brand specializes in budget oriented devices. Recently we'd had a look at their UV400 which is aimed at the budget segment and were impressed by what it was offering for the price but at CES this year Kingston launched the successor to the UV400 in form of the Kingston A400 SSD.

Thanks to Kingston India today we have with us today the Kingston A400 240GB SSD for review, so without wasting any time lets quickly get to its specifications.

Kingston opted for an entirely new controller this time in form of the Phison PS3111-S11 which is a dual channel controller and relatively new to the conventional controllers already in use. The choice is obviously indicating more towards cost cutting which we'll be discussing later on in the review.

Coming in at capacities of 120GB, 240GB and 480GB the SSDs are flat out rated at 500MB/s read speed and varying write speeds. Our 240GB sample is rated at 500MB/s read and 350MB/s write speeds and comes with a price tag of $84 or Rs 6000 in India which is identical to that of the Kingston UV400.

Packing and Closer Look

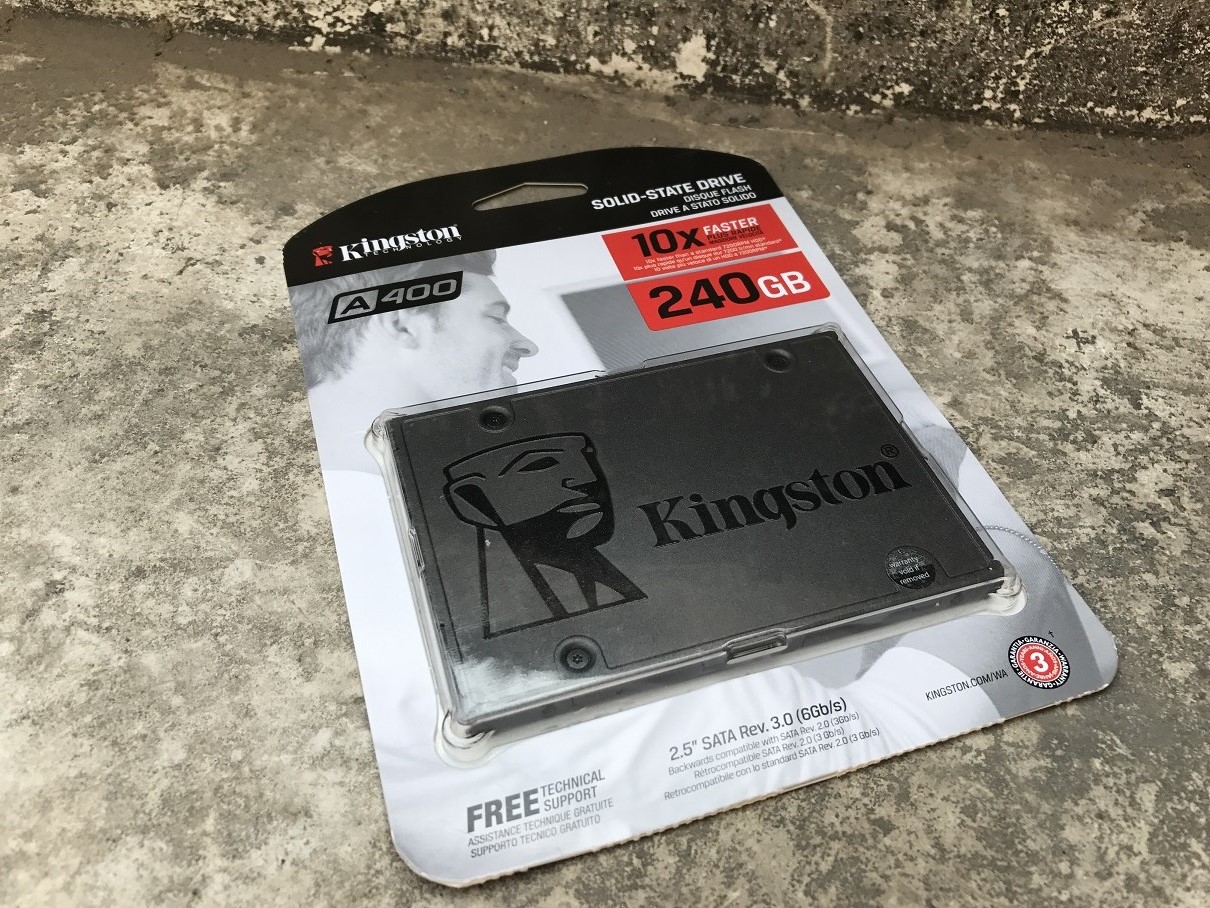

Kingston brings the A400 in a clear blister pack with the capacity and 3 Years Warranty support clearly listed and boldly printed for the buyers to know. A point worth noticing is that its not a SSDNow offering which marks the entry level SSDs from Kingston but is a standalone product this time. They've also made sure that you come to know that the drive is ten times faster than a mechanical HDD just to keep the marketing part up!

The back side has the brief description in multiple languages along with the importer sticker and price neatly printed. There is also a slit through which you can actually touch and read the sticker stuck behind the actual SSD itself.

Inside you get just the A400 SSD and nothing else like a bracket or spacer as its a budget drive and these measures are necessary to keep the price in check.

Looking at the SSD itself we see that its a grey colored device with a crisp and embossed Kingston branding. The drive is 7mm thick and weighs in at ~41g which is around 16g lighter than the SSDNow UV400.

The back is clean with a sticker enlisting the serial number, model number, capacity and the various quality check logos.

A thing worth mentioning is that even though the A400 is a budget drive its still made out of a textured aluminum casing with slight roughness to it which to be honest many other manufacturers resist using even in their premium SATA drives! Probably this is the best looking and rather most elegant SSD we've come across so far. Its simple & sophisticated all over.

Open the case, it'll void the warranty, to see the full size PCB housing 8 NAND chips & a controller. Kingston has used Toshiba 2D Planar 15nm TLC NAND and each of them are 30GB in size to provide the full 240GB. You'll notice that there is no DRAM buffer on this PCB, this we'll be discussing in the next section!

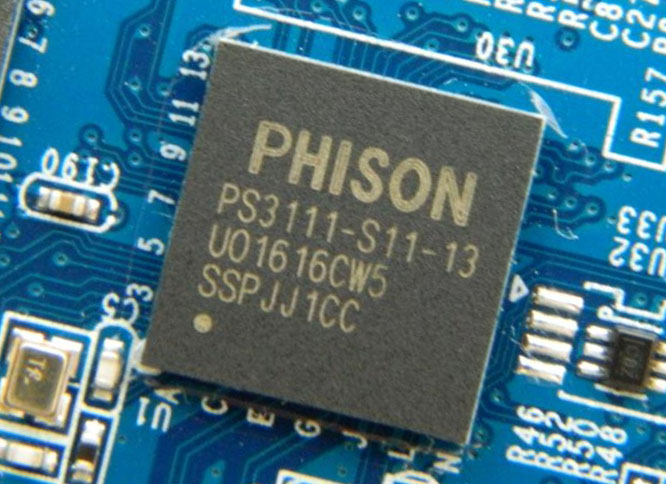

The controller used is a Phison PS3111-S11 dual channel chip which is aimed at powering DRAM less solutions such as the A400 hence achieving lower production cost and super low power consumption. S11 is Phison's first controller to support LDPC (Low Density Parity Correction) error correction. How this "interesting" offering fairs off against other controller based SSDs? For that we'll have to put it to test in our benchmarking section.

Test Setup and Benchmarks

We used our usual testbench to benchmark the Kingston A400 240GB SATA SSD.



CPU: Intel Core i7 7700K 4.2Ghz

Motherboard: Gigabyte Z270X Designare

RAM: Kingston HyperX Predator 8GB DDR4 3000Mhz Memory Kit

Cooler: Corsair H100i GTX (Push Pull Configuration)

Graphics Card: Gigabyte GTX 1050 Ti G1 Gaming 4GB OC

Storage: Kingston A400 240GB SSD

Power Supply: Corsair AX860i 860W 80+ Platinum

OS: Windows 8.1 Pro 64-bit

The drive was easy to fit in and installed without a problem. Following our usual SSD testing methods we formatted the drive and put it as a secondary drive with our main SSD loaded with Windows 8.1 Pro 64-bit. The entire test suite was run twice to obtain the best possible reading, each session performed after a fresh system restart. Out of the 240GB promised only 223GB on this drive is usable so around 7% of the total space is reserved for memory buffer.

For the benchmarks we'll be pitting the Kingston A400 240GB against Kingston's own UV400 480GB and ADATA XPG SX930 240GB SSDs. While one is a similar priced offering the other is an older but a high end SSD from a competing brand.

TRIM Check

Since this is a very new SSD for us so it called for some new testing suits aswell, one such tool is TrimCheck which verifies if TRIM function on the drive is working perfectly or not.

The test shows that TRIM is perfectly working on the Intel SSD.

Crystal Disk Info V7.0.5

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, to the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

Crystal Disk Info shows us that a bunch of useful SMART attributes are presented to the end user. Total reads and writes as well as NAND writes are shown. The firmware version we are testing with today is version SBFK10D7 with the drive working at optimum temperatures even during summers.

ATTO Disk

ATTO Disk Benchmark measures transfer rates across specific lengths for any storage system. ATTO uses RAW data, I set my transfer size from 0.5 to 8192kb. This is generally the most reliable benchmarks for today's SSDs.

Its clear aswell as surprising that the Kingston A400 with its new Phison controller is zooming against the competition! I was definitely not expecting such high grade performance from a new dual channel controller which has no DRAM buffer!

Also these speeds are way more than what Kingston has advertised for the A400 SSD. Kingston you are one humble lad eh?

CrystalDiskMark 5.0.2

CrystalDiskMark is a disk benchmark software that analyses different types of hard drive. Giving sequential benchmark write and read statistics in MB/s. A simple program that is very useful.

A similar scenario can be seen here aswell with a noticeable factor that even though its a DRAM less SSD the A400 has over 42MB/s of read and over 96MB/s of write speed in the 4K spectrum which is way higher than most of the more expensive SSDs that have quad or even eight channel controller with huge DRAM buffers!

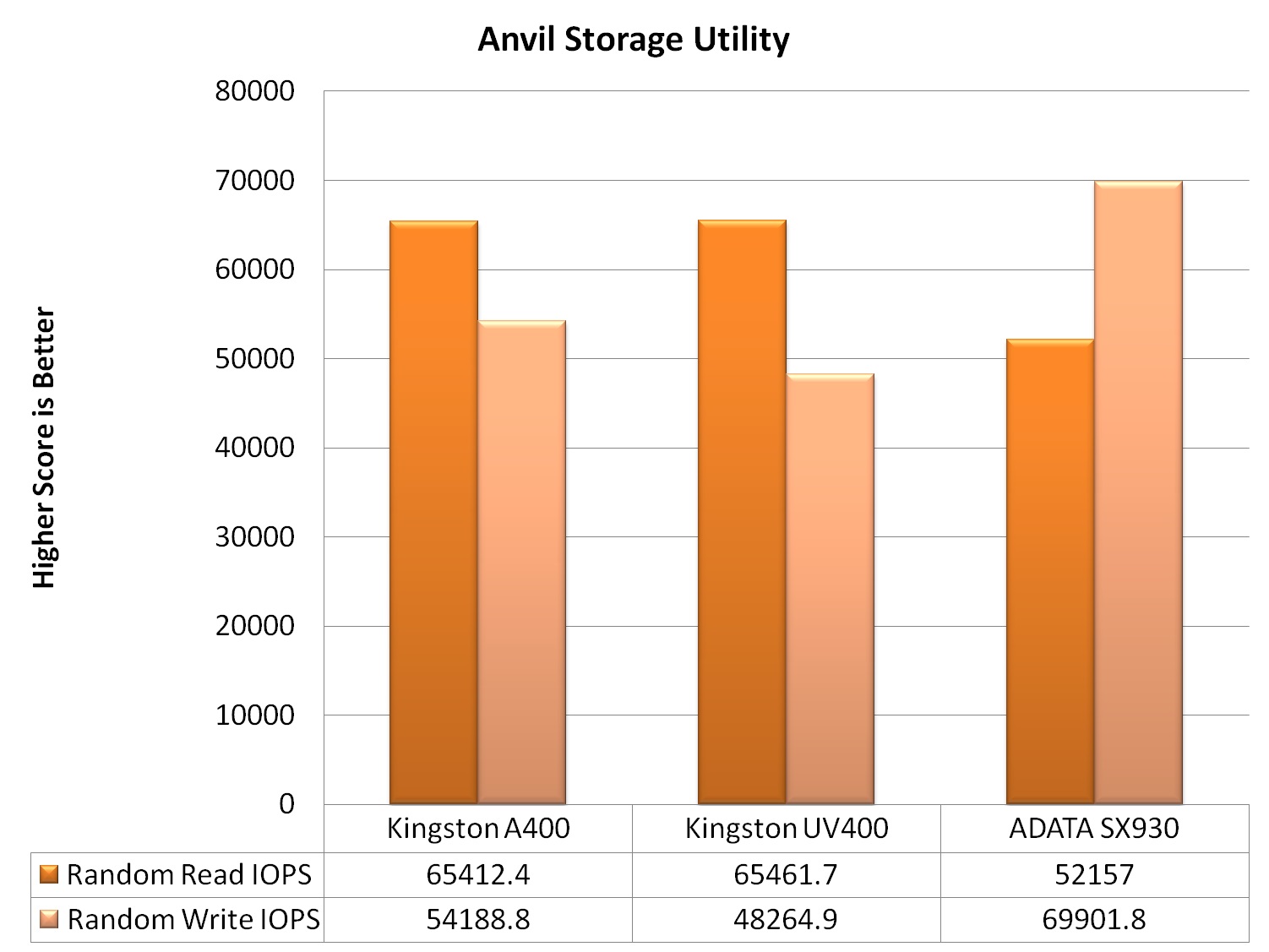

Anvil Storage Utility

The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score.

While the A400 is an overall winner by a significant margin over the UV400 it does tie the score with the SX930 which is yet again a feat for the Kingston A400.

Also in the IOPS test the A400 is better than the UV400 in the write test while beats the SX930 in the read test showing that the drive is extremely competent!

AS SSD

The AS SSD software determines the performance of Solid State Drives (SSD). The tool contains five synthetic and three practice tests. The synthetic tests determine the sequential and random read and write performance of the SSD. These tests are performed without using the operating system caches. In Sequential tests, the program measures the time it takes to read and write a 1 GB file respectively.

AS SSD is an extremely demanding test and any SSD scoring above 1000 in the overall score separates it from mediocre and high performance drives which both the UV400 and A400 manage to achieve. However the A400 loses to the UV400 in almost all areas which doesn't mean its a bad drive but due to the controllers extremely new nature and lack of firmware optimizations the drive seems to suffer a bit. Hope Kingston and Phison figure this out soon & roll out a more optimized firmware for the A400.

AIDA64 Extreme Edition v5.60

AIDA64 is one of the best tools out there to check the system stability, error diagnostics and even to validate overclocking.

It has a set of suites for almost every hardware out there including SSD/HDD. So we started of with AIDA64 disk suites.

As we can see that the drive is hitting the advertised speeds and is extremely consistent in read and write activities. This is a very good indications since most drives including the UV400 tend to fluctuate a lot in the Linear and Random Read tests indicating towards a more solid and consistent performance by the A400

HD Tune Pro

HD Tune Pro is one of the most popular hard drive software suites available. It has many different benchmarks and tests built into it. Our first test is the read benchmark, which tests the average read speed and access time of the drive.

It was necessary to use it even after so many tests just to give all of you a graph of how constant the speed is on this SSD as many SSDs tend to fluctuate on the read/write speed which ultimately gives you unstable performance.

A brilliant performance presented by the A400 yet again where its beating the competition by substantial margin! The drive is not only extremely consistent but shows really high speeds.

PCMark Vantage

We used the PCMark Vantage HDD test which is one of the best range of test suits out there for measuring the performance of any HDD/SSD. Tests are conducted by simulating real life tasks such as Windows Start up, Gaming etc.

With an overall score of 86807 and lowest speed of 305MB/s in the 'adding music to Windows Media Player' test the Kingston A400 has surpasses every competition in its segment and beyond! Even SSDs with quad-channel or octa-channel controllers have failed to put a score this high, this Phison S11 controller has some limitless potential. To be precise these are the highest score we've seen on any SATA SSD till date!

PCMark 8 Professional Edition

PCMark 8 Storage Test unlike PCMark Vantage scores and records the SSD performance through a set of application execution and related tasks such as Adobe Photoshop, Microsoft Office and even through games like Battlefield 3.

The scores are quite respectable and significantly more than the Kingston UV400 both in terms of overall score and storage bandwidth.

My Verdict

Its a winner! Yes I said it straight, the Kingston A400 is the best SSD that you can pick today for the price it comes for. At first I was a bit apprehensive about the performance of the drive & skeptical about Kingston's decision to go for a new dual channel DRAM less Phison controller but the A400 cleared all my doubts from the get go.

The blistering fast performance that the Phison S11 controller delivers is far superior to what we've been used to so far from more powerful controller accompanied by DRAM caches. Interestingly the firmware is new and by the looks of it we can safely presume that the upcoming firmware would further strengthen its performance.

Kingston has found itself a winner in form of the A400 since not only it beasts its predecessor the UV400, which it was meant to do, but also the A400 patches the rough areas where the UV400 stumbled such as high power consumption! During peak loads, the power consumption of the drive can reach 1.54 W on write operations and just 0.64 W when reading, this directly means that the A400 nibbles on power while rolls out trail blazing performance making it ideal for notebook owners aswell!

I highly recommend the Kingston A400 SSD to everyone who wants unmatched performance at minimal costs. Its a consumer's delight and competitor's nightmare.

I give it a 9/10 earning our Gold Award!
